Hello everyone, In this post we will learn about the basic of RESISTORS. Resistors are electronic component mostly used in all electronics circuits, it is made up of conductors and semiconductors materials ( later on we will learn about conductors and semiconductors). Resistors are used to control the current in a circuit however it is also used for other functions ( we will only learn the basic of resistors lol ). we will first learn how to read and understand resistors value using the Color code look and analyze the chart below:

                                                     CLICK TO ENLARGE
As you notice from the chart above each color ( starting from black to white) has a specified digit

e.g BLACK = 0 and each color have a multiplier if it is 10 to 2 for RED ( it should be 2 zero{00}).

Some colors have a tolerance value e.g GOLD 5%.

Now look and analyze the picture below:

As you notice that we have the 4 band and 5 band resistors we will learn reading value from the 4 band one.

                                                     CLICK TO ENLARGE

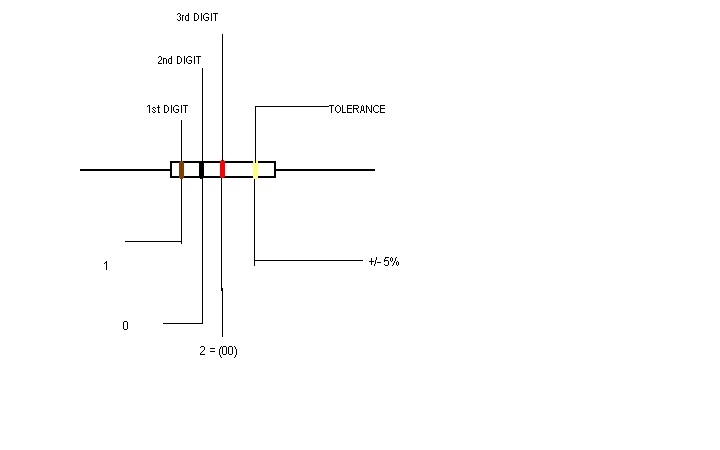

As in the picture above the first and second band are converted as there color code the third band are converted to the number of zeroes e.g 2 = 00. so it is 1 0 00 = 1000ohms = 1k ohms ( kilo ohms). That how we read resistors using color code.

Basic introduction to electronics components

Let's take a look at some the basic electronics components used in electronics circuits though on the site below some of them are not important for the basic introduction to components.
http://en.wikipedia.org/wiki/Electronic_component

basic soldering and desoldering techniques video

Basic Soldering Techniques

to have a good and simple guide about how to solder components on a PCB ( printed circuit board)
visit http://www.technick.net/public/code/cp_dpage.php?aiocp_dp=how_to_solder

you will need :

1. A good soldering iron ( preferably with a stand ) with a good and clean tip.

2. Reasonable amount of solder.

3. Good small PCB or a strip board.



simple LED throwie schematic diagram and guide

visit this link to have a layout and a guide to make the simple led throwie.

http://www.evilmadscientist.com/article.php/nightlight

How to make a simple LED throwie
